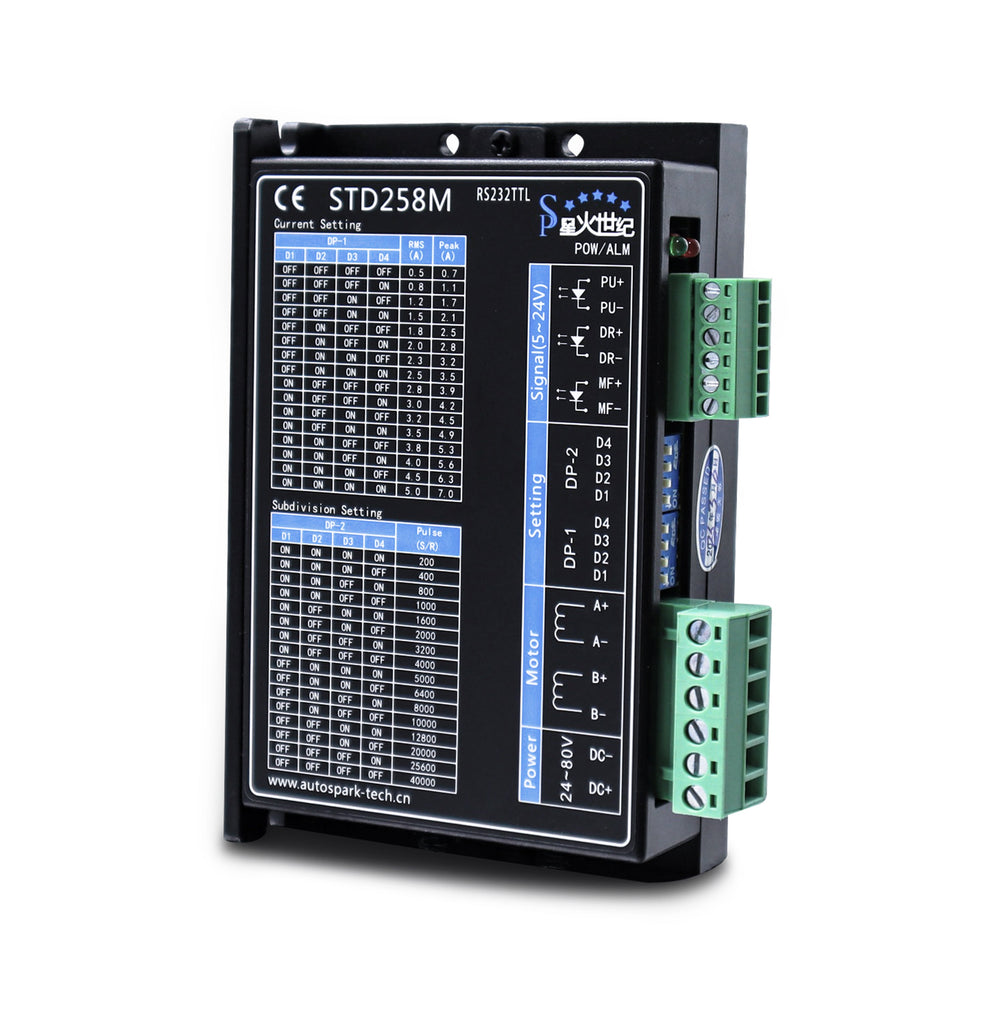

The naming system for stepper motor drivers have a standardized, 5-segment code that clearly defines the core specifications of each model, with the STD258M as a representative example. This structured naming method ensures engineers and buyers can instantly identify key performance parameters without checking complex data sheets. Let’s break down the STD258M model step by step, aligned with the official naming rules: Segment ① (STD): The abbreviation for "stepper motor driver", marking the product category.Segment ② (2): Indicates the driver type, specifically a 2-phase stepper motor driver, compatible with 2-phase hybrid stepper motors (the most common type in industrial automation).Segment ③ (5): Represents the adjustable output current range, with 6 corresponding to a rated effective current of 1.2-5A, suitable for medium-power stepper motors in applications like labeling machines and CNC equipment.Segment ④ (8): Defines the input voltage range, with 8 standing for DC24-80V, a wide voltage design that supports flexible power supply in different industrial scenarios.Segment ⑤ (M): Denotes a standard functional driver, with no special customization (other letters like N represent non-standard or custom functions). This naming convention is a critical tool for product selection. For example, when choosing a driver for a 42mm stepper motor in a labeling machine, the STD258M’s 2-phase, 1.2-5A, DC24-80V specifications directly confirm its compatibility. It eliminates selection errors, streamlines procurement, and ensures seamless integration between motors and drives, boosting the reliability of automated systems.
The naming system for stepper motor drivers have a standardized, 5-segment code that clearly defines the core specifications of each model, with the STD258M as a representative example. This structured naming method ensures engineers and buyers can instantly identify key performance parameters without checking complex data sheets. Let’s break down the STD258M model step by step, aligned with the official naming rules: Segment ① (STD): The abbreviation for "stepper motor driver", marking the product category.Segment ② (2): Indicates the driver type, specifically a 2-phase stepper motor driver, compatible with 2-phase hybrid stepper motors (the most common type in industrial automation).Segment ③ (5): Represents the adjustable output current range, with 6 corresponding to a rated effective current of 1.2-5A, suitable for medium-power stepper motors in applications like labeling machines and CNC equipment.Segment ④ (8): Defines the input voltage range, with 8 standing for DC24-80V, a wide voltage design that supports flexible power supply in different industrial scenarios.Segment ⑤ (M): Denotes a standard functional driver, with no special customization (other letters like N represent non-standard or custom functions). This naming convention is a critical tool for product selection. For example, when choosing a driver for a 42mm stepper motor in a labeling machine, the STD258M’s 2-phase, 1.2-5A, DC24-80V specifications directly confirm its compatibility. It eliminates selection errors, streamlines procurement, and ensures seamless integration between motors and drives, boosting the reliability of automated systems.

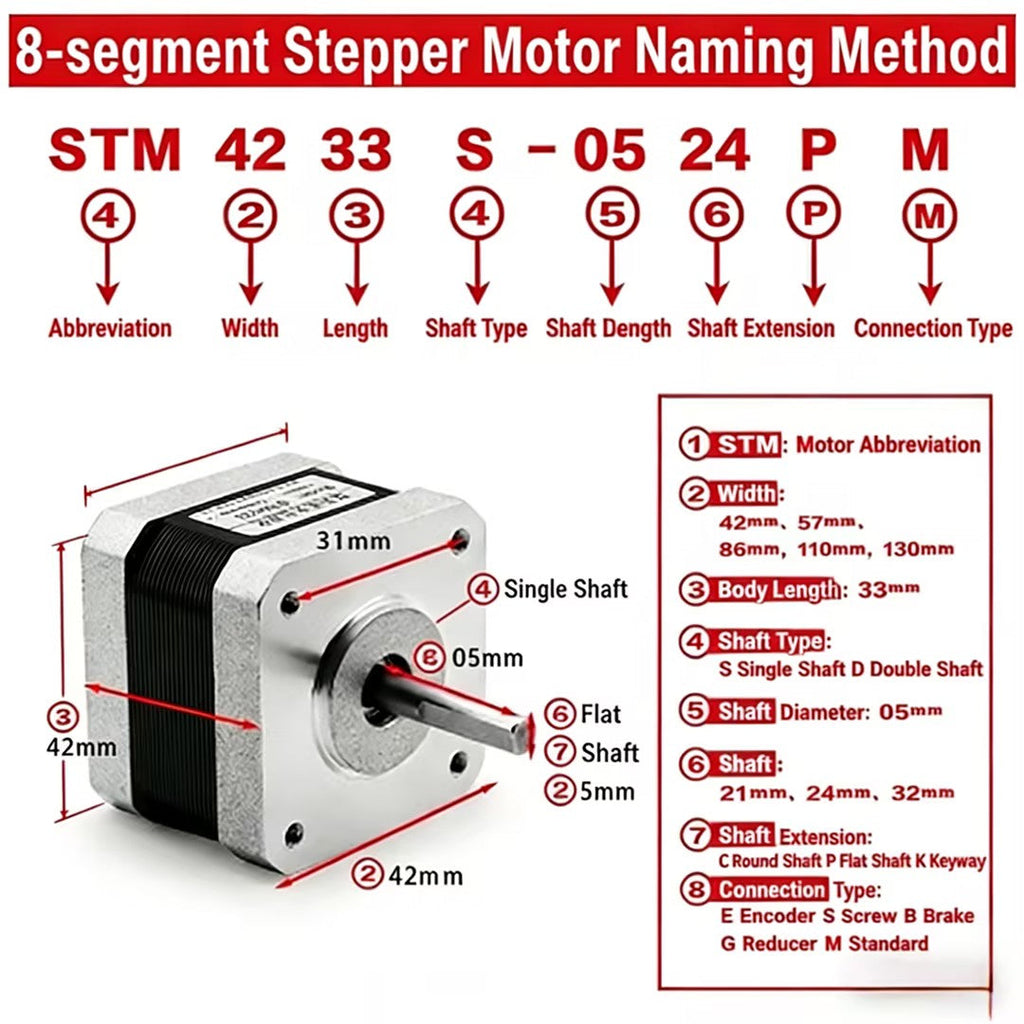

Stepper Motor Model Naming Conventions and In-Depth Analysis In the field of industrial automation, stepper motors are core components for achieving precise positioning and motion control. However, the chaotic naming conventions and vague specifications across different brands on the market make selection difficult and increase communication costs, thereby impacting equipment assembly and production efficiency. A clear and unified naming convention is crucial for...
